Industrial Control Computer Industrial Control Host Embedded PC Dual Network Port Supports Multi-Serial Port Android
Compared with ordinary computers, industrial computer has unique advantages and has been widely used in industry and people's life. With strong configuration, no fan, energy saving and environmental protection, beautiful and light, unique cooling design and other quality.
1. The whole body is made of aluminum alloy, which is durable and has strong compression resistance. It is more suitable for the use of automation equipment in harsh environment.
2. Rich interface design, no fan silent, industrial dustproof, aluminum alloy shell, fully enclosed design, mini cabinet, 7 * 24-hour operation, strong configuration, simple installation.
3. The COM port of the host computer has RS-232 / RS422 / RS485 standard com serial ports, which can be used in various communication equipment.
4. Aluminum alloy die casting, private mold processing, high precision, strong electromagnetic oxidation ability.
5. It has the ability of 24-hour continuous operation, stable operation in various environments, and meets the operation requirements of all kinds of commercial and industrial automation equipment.
6. Industrial chip, strong performance, to meet the needs of many industrial control industries.
7. The industrial control host adopts wide temperature design, supports full load continuous operation for 7 * 24 hours, and supports stable operation at - 10 ℃ ~ + 60 ℃.

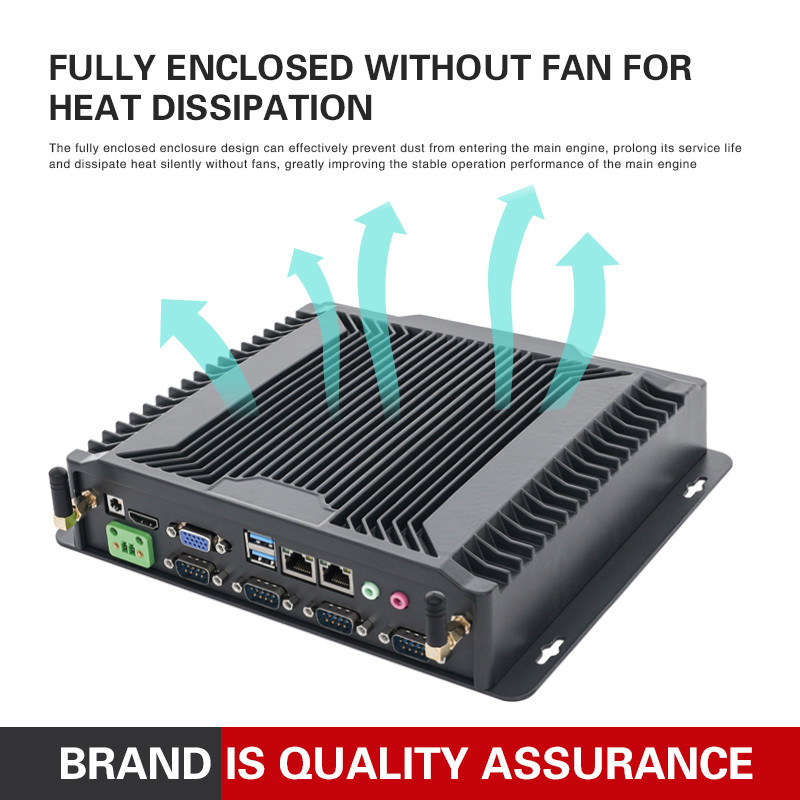

8. All aluminum shell, high density cooling teeth design, no fan, refuse dust to enter and damage hardware life.
9. Compatible with multiple operating systems, win7 system is pre installed by default, supporting multi system / virtualization.
10. Before leaving the factory, each host has passed 72 hours high temperature aging and full load copying test to ensure the compatibility of software and hardware and system stability.
11. It supports multi screen simultaneous / differential display, and can easily realize multi screen synchronous / asynchronous display through VGA or HDMI interface expansion.
12. With its own mounting bracket, it supports wall mounted, rack mounted, desktop, embedded and other installation methods, and can be flexibly fixed to the desktop, wall and other customer supplied parts. Space saving, easy and fast installation.
| Production specifications |
| Color | silver |
| SIZE | 21cmx 20cm x5 cm(Length, width, height) |
| Structure | all-aluminium Alloy fan-less enclosure for heat dissipation |
| Material Quality | Aluminium Alloy+Galvanized Steel |
| Memory | one DDR3L/1,.35 memory ,up to 8G( Optional) |
| 2.5Hard Disk | Capacity 500G(Optional) |
| CF | N/A |
| SSD | N/A |
| POWER | Standard 12V or 5V adapter(optional) |
| Installation mode | Desktop or wall mounted |
| Operating temperature | -10℃-60℃ |
| Storage temperature | -20℃-90℃ |
| Relative humidity | 5%-95% No condensation |
| Working Vibration | 0.5grms/5-500HZ/random/oper ating |
| Motherboard type | National Solid State Capacitor motherboard |
| Processor | Intel arena j1800/j1900 Core I3/I5/I7 |
| Graphics Cards | Collection inter HD key graphics cards |
| WEB | Collection 1x inter WG Gigabit network cards, Support Network wake-up /PXE function |
| USB | 8*USB |
| Interface | 6*RS232 Serial port |
| Display | 1*VGA 1*HDMI |
| Audio | 1*MIC,1*Line-out |
| Expansion slot | 2*MINIPCIE(1*WIFI 1*MSATA) |
| Indicator Lights | Power indicator lights |
| System control | The power switch |
| wireless | 2*WIFI/3G SMA antenna (optional) |
